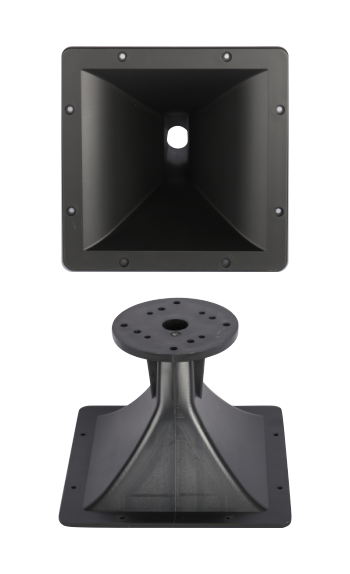

PRODUCTS   >  HORN  >  H225



DATA SHEETS:

Click to download PDF







FEATURES:

  • 1" Throat entry
  • 80° x 50° nominal coverage
  • Excellent loading down to 600 Hz
  • Constant directivity
